⚙️ Rehlko 9EFKOZD-RE3 – Key Specifications

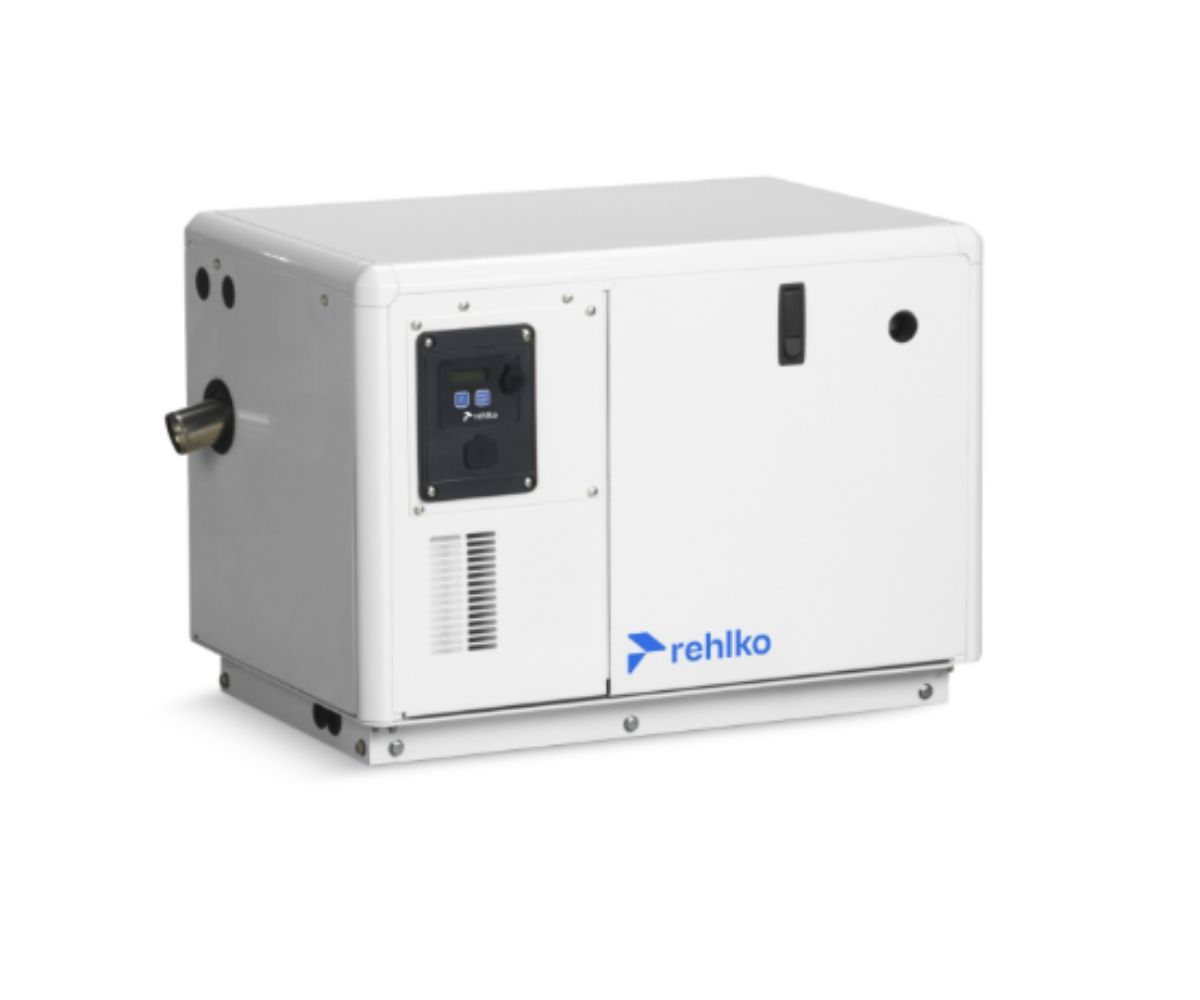

• Model: 9EFKOZD-RE3
• Power Output: 9 kW (11.3 kVA) @ 50 Hz
• Voltage: 230/400 V, Three Phase
• Frequency: 50 Hz
• Fuel Type: Diesel
• Engine Type: Rehlko Diesel Engine
• RPM: 1500 rpm
• Cooling System: Closed-loop with heat exchanger
• Alternator Type: 4-pole, rotating-field
• Voltage Regulation: ±1.0%
• Insulation Class: H
• Control Panel: ADC II Digital Controller
• Display: 12x2 LCD alpha-numeric
• Remote Start: 12-pin connector
• Communication Protocols: SAE J1939, SmartCraft™, NMEA 2000
• Sound Shield: Optional
• Dimensions (Approx.):
  • Length: 960 mm (37.8 in.)
  • Width: 528 mm (20.8 in.)
  • Height: 559 mm (22 in.)
• Dry Weight: 273 kg (602 lbs)
• Certifications: EPA Tier III Marine Auxiliary
