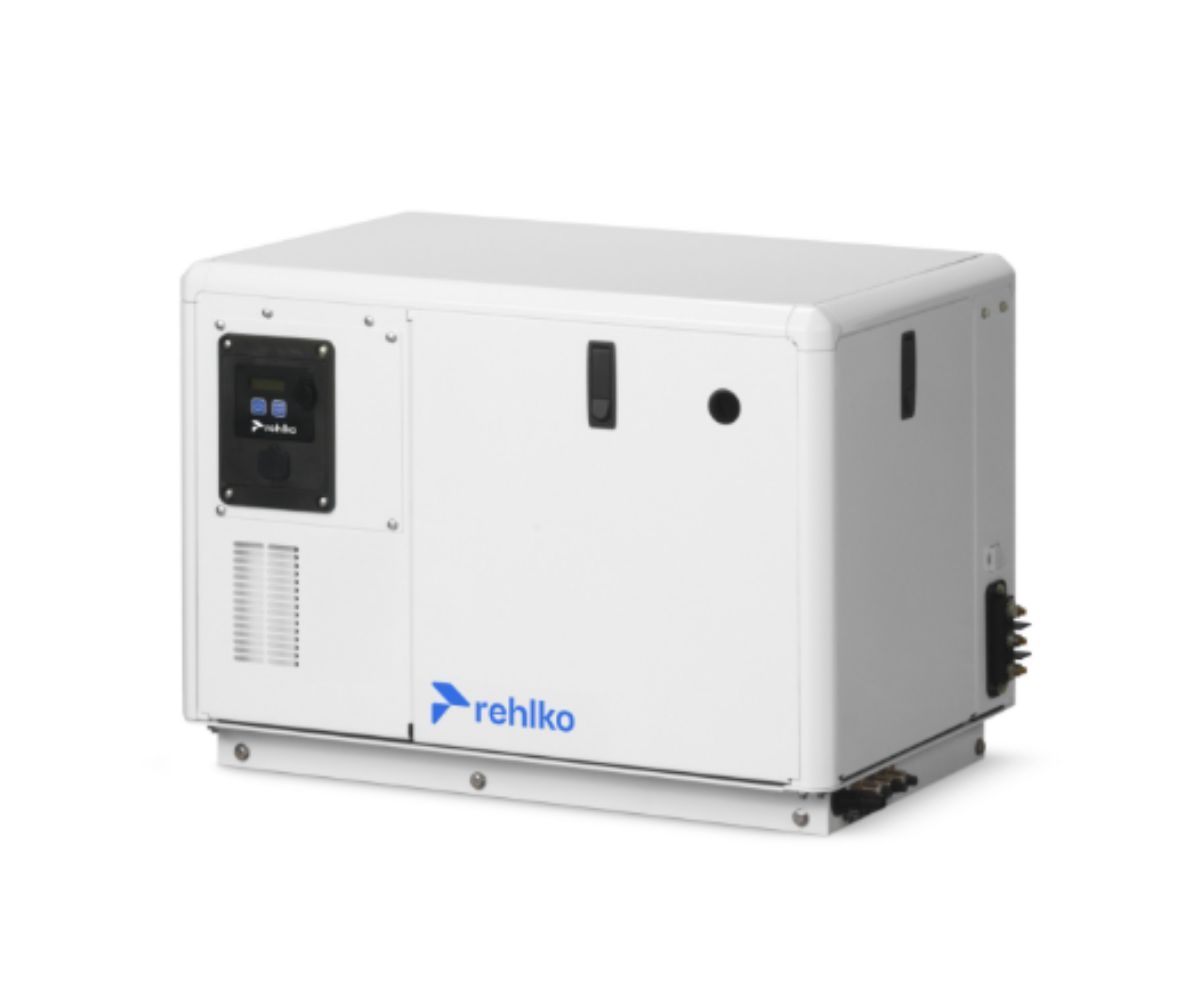

⚙️ Rehlko 6EKOD-12V-1PH – Key Specifications

• Model: 6EKOD-12V-1PH
• Power Output: 6 kW @ 60 Hz
• Voltage: 120V, Single Phase
• Frequency: 60 Hz
• Fuel Type: Diesel
• Engine Type: 3-cylinder, 4-cycle
• Cooling System: Closed-loop with heat exchanger
• Alternator Type: 4-pole, rotating-field
• Voltage Regulation: ±1.0%
• Insulation Class: H
• Control Panel: ADC II Digital Controller
• Display: 12x2 LCD alpha-numeric
• Remote Start: 12-pin connector
• Communication Protocols: SAE J1939, SmartCraft™, NMEA 2000
• Sound Shield: Optional
• Dimensions (Approx.):
  • Length: 838 mm (33 in.)
  • Width: 508 mm (20 in.)
  • Height: 546 mm (21.5 in.)
• Dry Weight (w/o Sound Shield): ~180 kg (397 lbs)
• Wet Weight (w/ Sound Shield): ~210 kg (463 lbs)
• Certifications: EPA Tier III Marine Auxiliary
