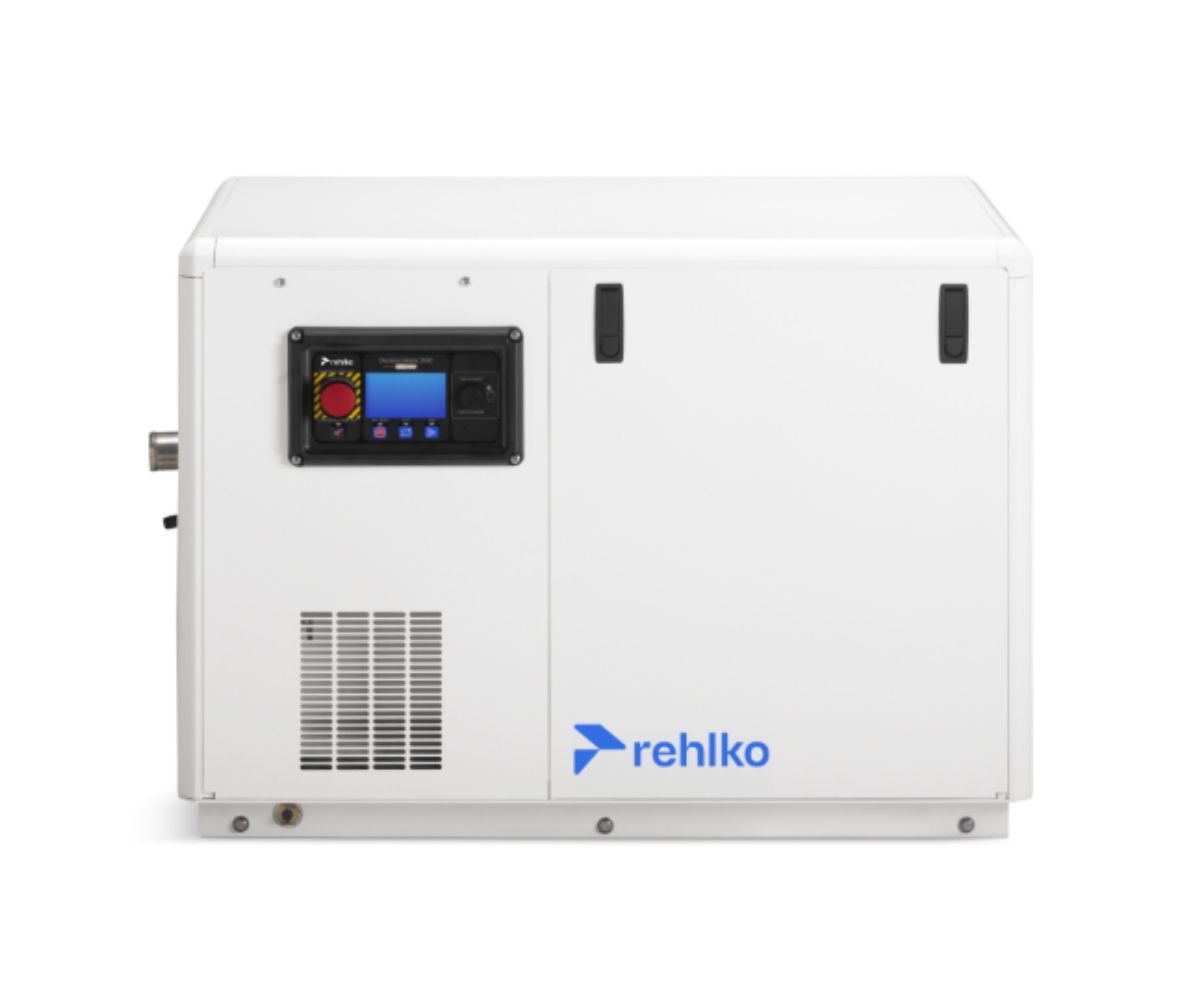

16EKOZD-12V-1PH
Product Details
⚙️ Rehlko 16EKOZD-12V-1PH – Key Specifications
- Model: 16EKOZD-12V-1PH
- Power Output: 16 kW @ 60 Hz
- Voltage: 120V, Single Phase
- Frequency: 60 Hz
- Fuel Type: Diesel
- Engine Type: 3-cylinder, 4-cycle
- Engine Speed: 1800 RPM
- Cooling System: Closed-loop with heat exchanger
- Alternator Type: 4-pole, rotating-field
- Voltage Regulation: ±1.0%
- Insulation Class: H
- Control Panel: Decision-Maker® 3500 Controller
- Display: 12x2 LCD alpha-numeric
- Remote Start: 12-pin connector
- Communication Protocols: SAE J1939, SmartCraft™, NMEA 2000
- Sound Shield: Optional
- Dimensions (Approx.):
- Length: 1064 mm (41.9 in.)
- Width: 652.5 mm (25.7 in.)
- Height: 711 mm (28 in.)
- Dry Weight: 385 kg (849 lbs)
- Wet Weight: 398 kg (877 lbs)
- Certifications: EPA Tier III Marine Auxiliary
