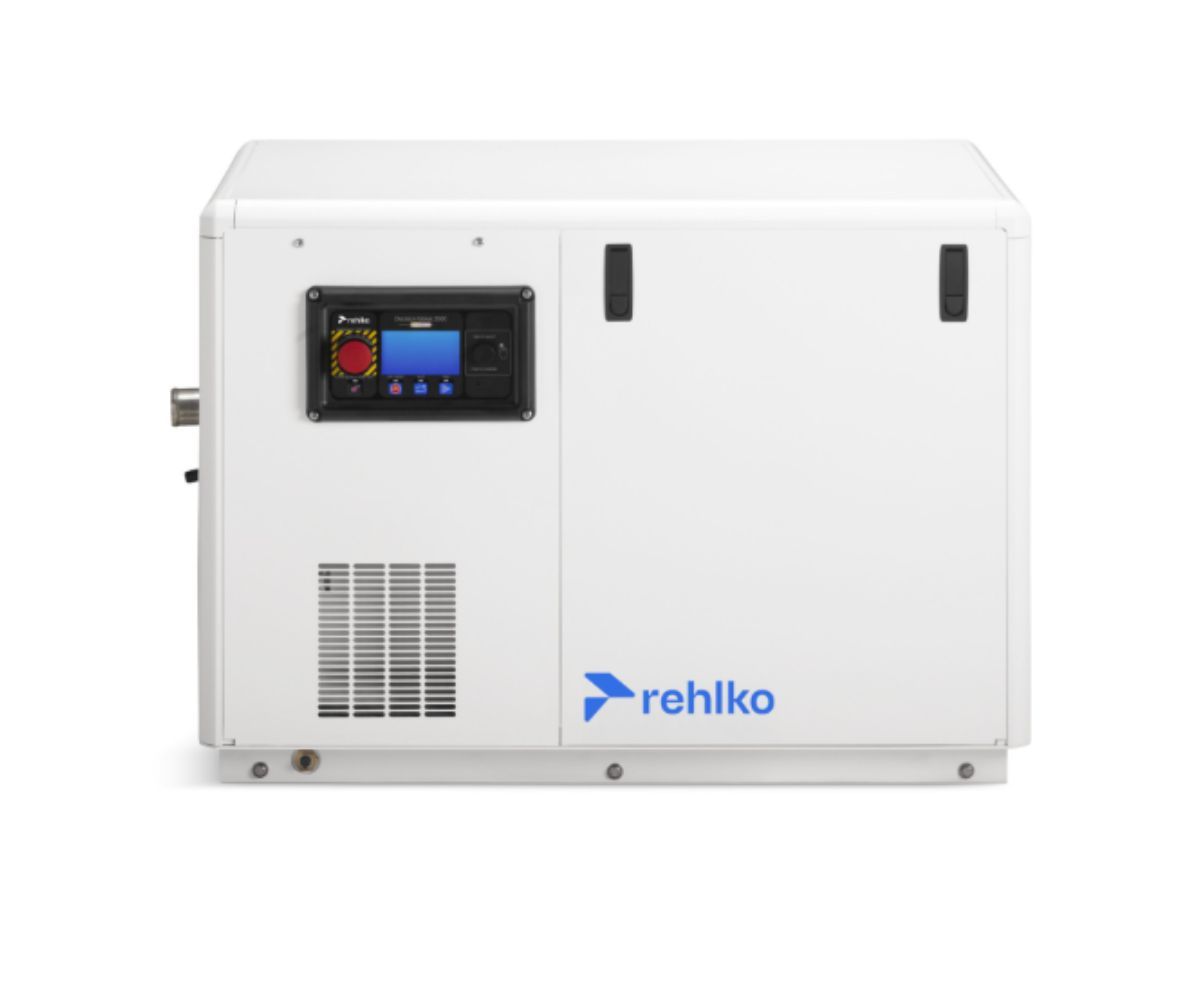

⚙️ Rehlko 14EKOZD-12V-1PH – Key Specifications

• Model: 14EKOZD-12V-1PH
• Power Output: 14 kW @ 60 Hz
• Voltage: 120V or 120/240V, Single Phase
• Frequency: 60 Hz
• Fuel Type: Diesel
• Engine Type: 3-cylinder, 4-cycle
• Engine Speed: 1800 RPM
• Cooling System: Closed-loop with heat exchanger
• Alternator Type: 4-pole, rotating-field
• Voltage Regulation: ±1.0%
• Insulation Class: H
• Control Panel: Decision-Maker® 3500 Controller
• Display: 12x2 LCD alpha-numeric
• Remote Start: 12-pin connector
• Communication Protocols: SAE J1939, SmartCraft™, NMEA 2000
• Sound Shield: Optional
• Dimensions (Approx.):
  • Length: 1064 mm (41.9 in.)
  • Width: 652.5 mm (25.7 in.)
  • Height: 711 mm (28 in.)
• Dry Weight: 385 kg (849 lbs)
• Wet Weight: 398 kg (877 lbs)
• Certifications: EPA Tier III Marine Auxiliary.
